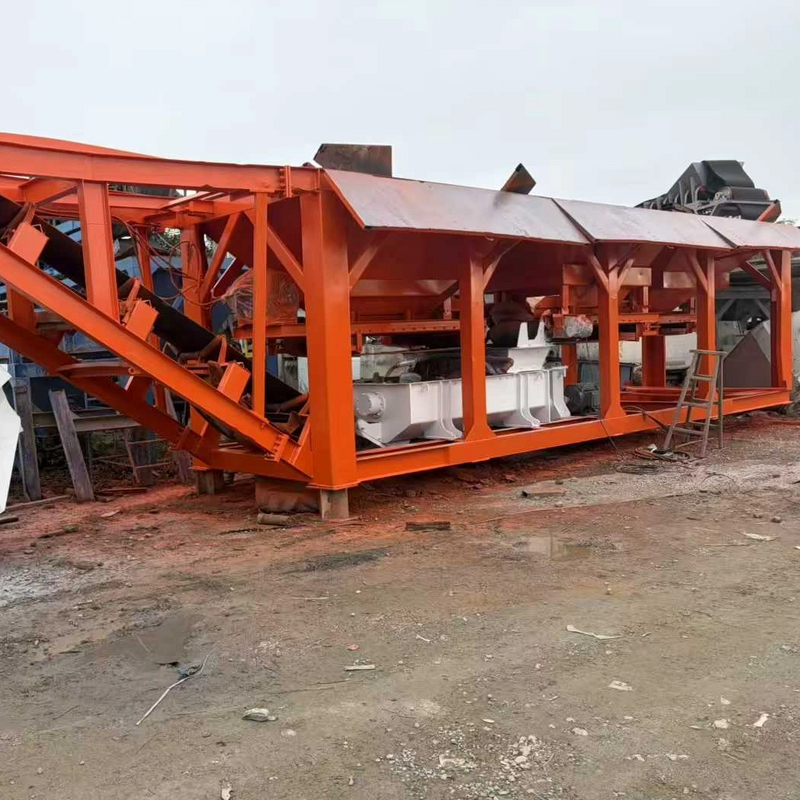

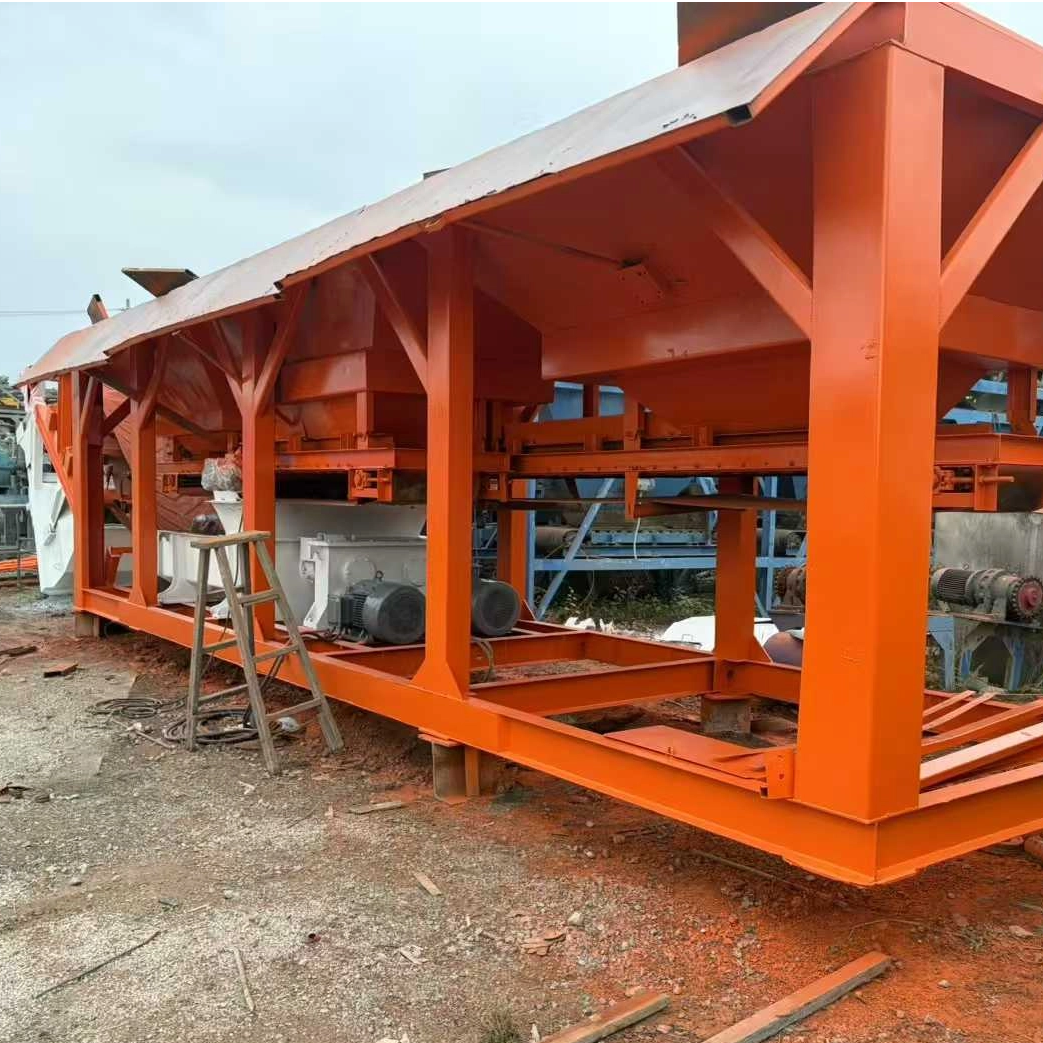

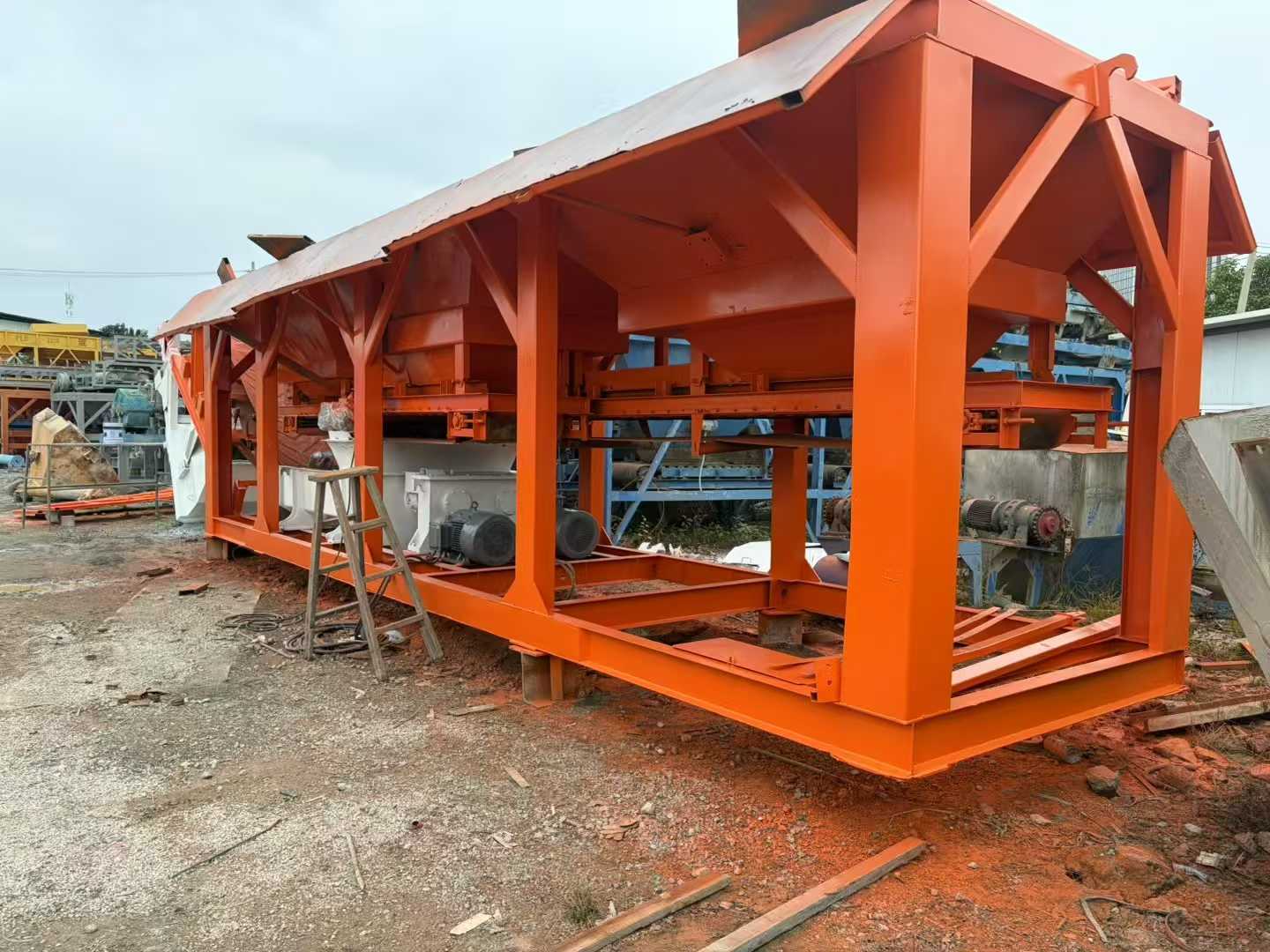

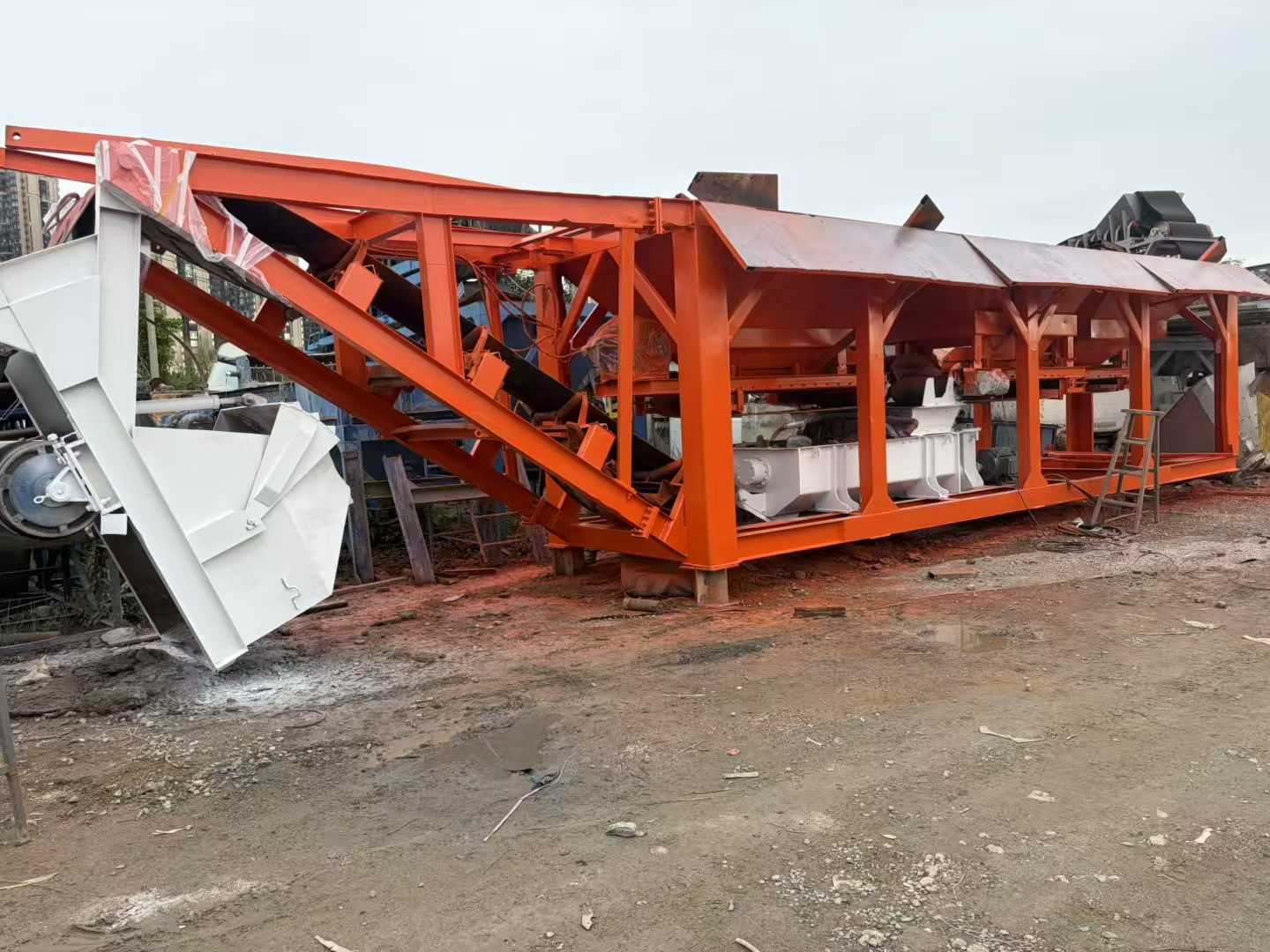

Integrated Water Stabilization Station 400T

The 400 model water-stabilization mixing station is a medium-sized equipment for pavement base layer construction. Its theoretical production capacity is 400 tons per hour. In actual operation, affected by factors such as raw material properties and mix ratios, it usually reaches 300-400 tons per hour. The number of aggregate bins is 3-4, with each bin having a volume of 8-12 cubic meters. It can store multiple specifications of aggregates simultaneously. The double-rotor forced type without liner design has a motor power of 55-110 kW, ensuring uniform mixing and low maintenance costs. The total power is 90-120 kW, including all system energy consumption such as batching, conveying, and mixing. The floor area ranges from 22×3 meters (baseless integrated machine) to 47.5×8 meters (fixed type). The baseless model only requires a hardened ground and is easy to move. Electronic belt scales, screw scales, and turbine flowmeters are used.

Stabilized soil mixing plant

Efficient mixing ability: capable of uniformly mixing materials such as lime, cement, fly ash, sand and gravel into high-quality stable soil

Simple structure, easy operation: low maintenance cost, low failure rate

Accurate ingredients: Each material is accurately proportioned to ensure the strength and stability of the roadbed

Improve road durability: The stable soil base produced has strong compressive, frost resistance, and durability

Economy: Compared with on-site manual mixing, the efficiency is improved by 3-5 times, and the quality is more stable

Widely applicable: can be used for highways, urban roads, airport runways, railway embankments

Strong continuous supply capability: ensuring the 24-hour construction needs of large construction sites
